Home Á¦Ç°¼Ò°³ ¸µºê·Î¿ö IHB-402S-1,402-1

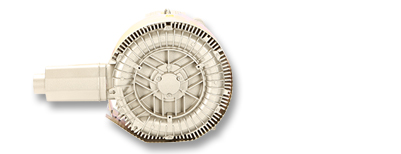

IHB- 402S-1,402-1 Single Phase (1¨ª)
IHB-402S-1

IHB-402-1

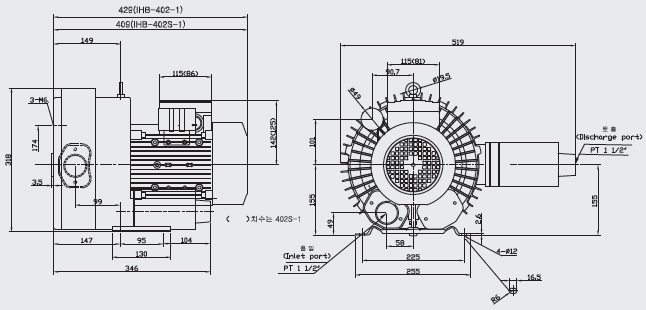

Unit : mm
Ç× ¸ñ IHB-402S-1 IHB-402-1
50Hz 60Hz 50Hz 60Hz
»ó¼ö Phase 1 1 1 1
¸ðÅÍ Motor HP 2 2 3 3
kW 1.5 1.5 2.2 2.2
¼ÒÀ½ Sound Level dB(A) 68 75 68 75
Àü·ù Current(A) 220V 11.5 11.5 15 15
Á¤°ÝÅäÃâ Rated Pressure mmaq 2500 2500 3500 3500
inch 98.43 98.43 137.80 137.80
psig 3.56 3.56 4.98 4.98
Á¤°ÝÈíÀÔ Rated Vacuum mmaq 2300 2400 2500 2600
inch 90.55 94.49 98.43 102.36
psig 3.27 3.41 3.56 3.70
ÃÖ´ëdz·® Max Air Flow §©/min 2.5 3.2 2.5 3.2
cfm 88.3 113.0 88.3 113.0
ÀçÁú Material Impeller ALDC12.1 ALDC12.1
Casing ALDC12.1 ALDC12.1
º£¾î¸µ Bearing Front/Rear 6204z/6205zz 6204z/6205zz
¹«°Ô Weight 35.4 39.4
Äܵ§¼­ Capacitor 300Vac/40§Þ 300Vac/60§Þ
Àý¿¬°è±Þ Insulation Class F F
