Home Á¦Ç°¼Ò°³ ¸µºê·Î¿ö IHB-402S,402,402S(PH),402(PH)

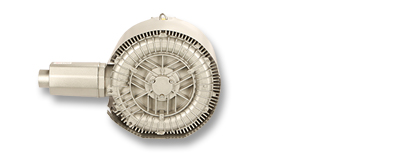

IHB- 402S,402,402S(PH),402(PH)
Three Phase (3Ø)
IHB-402S

IHB-402

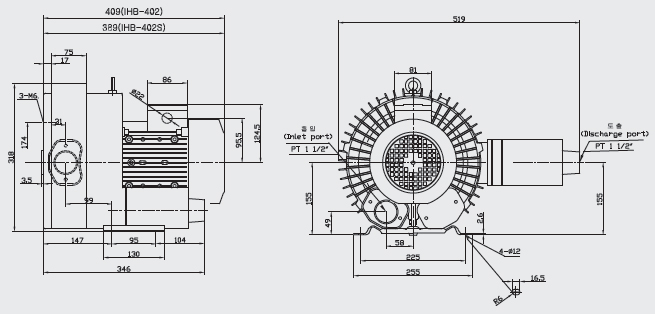

Unit : mm
Ç× ¸ñ IHB-402S 402SPH
ÇÁ¹Ì¹Ì¾ö °íÈ¿À²
IHB-402 402PH
ÇÁ¹Ì¹Ì¾ö °íÈ¿À²
50Hz 60Hz 60Hz 50Hz 60Hz 60Hz
»ó¼ö Phase 3 3
¸ðÅÍ Motor HP 2.0 2.3 2.3 3.0 3.4 3.4
kW 1.5 1.75 1.75 2.2 2.55 2.55
¼ÒÀ½ Sound Level dB(A) 68 75 75 68 75 75
Àü·ù Current(A) 220V 6.3 6.7 6.6 9.8 9.5 10.7
380V 3.6 3.7 3.8 5.7 5.5 6.2
Á¤°ÝÅäÃâ Rated Pressure mmaq 2800 2800 2800 3500 4000 4000
inch 110.24 110.24 110.24 137.80 157.48 157.48
psig 3.98 3.98 3.98 4.98 5.69 5.69
Á¤°ÝÈíÀÔ Rated Vacuum mmaq 2400 2800 2800 2600 3000 3000
inch 94.49 110.24 110.24 102.36 118.11 118.11
psig 3.41 3.98 3.98 3.70 4.27 4.27
ÃÖ´ëdz·® Max Air Flow §©/min 2.5 3.2 3.2 2.5 3.2 3.2
cfm 88.3 113.0 113.0 88.3 113.0 113.0
ÀçÁú Material Impeller ALDC12.1 ALDC12.1
Casing ALDC12.1 ALDC12.1
º£¾î¸µ Bearing Front/Rear 6204z/6205zz 6204z/6205zz
¹«°Ô Weight 33.3 33.3 33.3 35.8 35.8 35.8
±âµ¿°è±Þ Starting Class K K
Àý¿¬°è±Þ Insulation Class F F
