Home Á¦Ç°¼Ò°³ ¸µºê·Î¿ö IHB-1702,1802

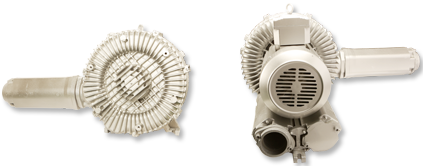

IHB- 1702,1802 Three Phase (3¨ª)
IHB-1702PH
IHB-1802PHOB

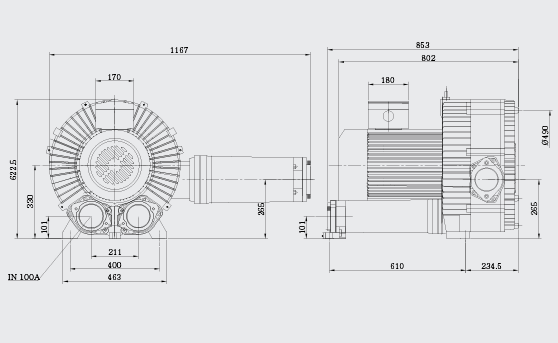

Unit : mm
Ç× ¸ñ IHB-1702 IHB-1802OB
50Hz 60Hz PH 50Hz 60Hz PH
30 Phase 3 3 3 3 3 3
¸ðÅÍ MOTOR HP 35.7 40 40 40 50 50
KW 26.8 30 30 30 37 37
¼ÒÀ½ Sound Level dB(A) 87 89 89 87 89 89
Àü·ù Current (A) 220V 88 102 102 102 121 121
380V 47.3 59 59 59 71 71
Á¤°ÝÅäÃâ Rated Pressure mmaq 2900 3200 3200 3800 4200 4200
inch 114.2 126.0 126.0 149.6 165.4 165.4
psig 4.12 4.55 4055 5.41 5.97 5.97
Á¤°ÝÈíÀÔ Rated Vacuum mmaq 3000 3500 3500 4000 4500 4500
inch 118.1 137.8 137.8 157.5 177.2 177.2
psig 4.27 4.98 4.98 5.69 6.40 6.40
ÃÖ´ëdz·® Max Air Flow §©/min 30 30 30 30 30 30
cfm 1059.4 1059.4 1059.4 1059.4 1059.4 1059.4
ÀçÁú Material Impeller ADLD12.1 ADLD12.1 ADLD12.1 ADLD12.1 ADLD12.1 ADLD12.1
Casing Cast Iron(FC-20) Cast Iron(FC-20) Cast Iron(FC-20) Cast Iron(FC-20) Cast Iron(FC-20) Cast Iron(FC-20)
º£¾Æ¸µ Bearing Front/middle/Rear 6308Z/6308Z 6308Z/6308Z
¹«°Ô Weight 391 439
